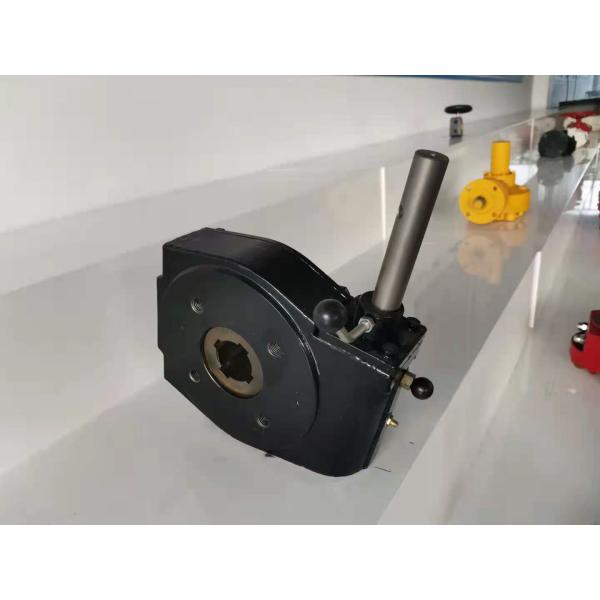

Cast Steel Casing Clutch Gear Operator Suitable For Pneuematic Actuator

  • 1
  • 2

Brand Name : Stard-gears

Model Number : SLJ series

Certification : IP65

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : D/P, T/T

Supply Ability : 1000 Pcs-6 weeks

Delivery Time : 20~30 work days

Packaging Details : Cartons or wooden cases

Product Name : Clutch gear operator

Meterial : Aluminum die-cast alloy or cast steel casing

Protection Grade : Ingress Protection Rating IP65

Temperature : Applicable To -20 ℃ ~120 ℃

Application : General,Oil,Gas,Water,Valves For Solid/Liquid And Gas

Sealing material : NBR

Contact Now

Clutch Gear Operators With Cast Steel Casing Suitable For Pneuematic Actuator
This product is mainly used to cooperate with the starting actuator, and the pneumatic actuator is divided into double-acting actuator and single-acting actuator

SLJ series are special gear operators which are suitable for pneuematic actuator because they can be clutch.
This series consists of eight models with the speed ratio varying from 26:1 to 520:1 and the toque ranging from 300NM to 22000NM. The torque difference between every two adjacent models is small, helping to save a lot of costs for customers when selecting a specific product. The clutch gear operator has a torque ranging from 300NM to 22,000NM and is available in 8 models with the speed ratio varying from 26:1 to 520:1.


Product Features

  • Aluminum die-cast alloy or cast steel casing
  • Full stamped hand-wheel (200-350)
  • IP65 grade protection
  • Nickel-plated input shaft, with more resistance to corrosion
  • Ductile iron worm gear
  • NBR sealing material
  • Suitable for -20℃ ~ 120℃ working conditions

Mainly used in Marine valves and chemical, petroleum and other industries

Customization

  • Stainless steel or LCB casing
  • IP68 grade protection
  • Aluminum-bronze worm gear
  • Stainless steel input shaft
  • For high temperature up to 320℃
  • For low temperature down to -40℃
  • For marine use

Main Components List

Part name

Material

Small cap

WCB

Housing

WCB

Worm gear

QT500-7/ Bronze

Bracket cap

WCB


Main Technical Parameter

Model

ratio

Rating input(Nm)

Rating output(Nm)

Efficiency(%)

Hand-wheel

SLJ26

26:1

50

300

23

Φ200

SLJ38

38:1

65

550

23

Φ200

SLJ54

54:1

70

620

25

Φ250

80

700

Φ300

75

1000

Φ250

SLJ80

80:1

90

1200

26

Φ300

95

2000

Φ350

SLJ78

78:1

160

3200

26

Φ600

Cast Steel Casing Clutch Gear Operator Suitable For Pneuematic Actuator
